How I Got Here: The Research Journey

From initial curiosity about emotion recognition to building wearable health monitoring systems — a journey of iterative problem-solving, debunked assumptions, hardware discoveries, and laboratory debates.

Phase 01 · Exploration & Audit DREAMER Dataset

Emotion Recognition via EEG & ECG

I ran a rigorous temporal audit across 14 training subjects (252 trials, 18 stimuli) evaluating 30s trajectories and snapshot windows. While physiology models hovered at median balanced accuracies of 0.426–0.576, the clip-only baseline reached 0.828 for Valence and 0.755 for Dominance.

Multiplicity correction eliminated all apparent regional effects (0 of 1,242 comparisons survived Holm adjustment). The classifiers were not decoding universal emotional signatures—they were fitting stimulus-specific artifacts.

Dominance · Random Forest snapshots (EEG, ECG, EEG+ECG)
Fig 1.1 · Dominance · Random Forest Snapshots 0 / 1,242 Holm Sig
Observation

"The physiology models were not decoding emotion—they were memorizing clip artifacts. The stimulus was the real predictor."

14 Subjects · 252 Trials 0 / 1,242 Holm Significance Clip: 0.828 vs Physio: 0.576
Phase 02 · Counter Solution Hardware Acquisition · ECG + PPG

DIY ECG & PPG Monitoring System

Instead of relying on ambiguous labels from strangers, I built my own synchronous biopotential (ECG) and optical pulse (PPG) acquisition rig to study my own cardiac dynamics and pulse transit under controlled conditions.

Designing the analog front-end and optical photoplethysmography interface taught me that biopotential signal integrity at the skin interface matters far more than downstream software filtering.

Live Dual-Trace Oscilloscope Testing: ECG and PPG with Finger Probe
Fig 2.1 · Live Synchronous Dual-Trace (ECG + PPG) AD8232 + MAX30102
Observation

"Hardware design decisions dictate algorithmic ceiling. Clean analog filtering solved noise that downstream ML could never compensate for."

AD8232 + MAX30102 Dual-Trace Real-Time Telemetry ESP32 · FreeRTOS Tasks
Phase 03 · Deep Observation Long-Term HRV · N=1

Long-Term Self-Monitoring & Autonomic Discovery

Tracking my own cardiac metrics continuously over multi-week periods revealed clear autonomic signatures. Beyond broad emotion buckets, the signal mirrored cognitive state transitions: making errors, cognitive friction, and study retention quality.

Crucially, resting baselines shifted by over 25 BPM between contexts—proving that fixed population thresholds fail without personalized continuous calibration.

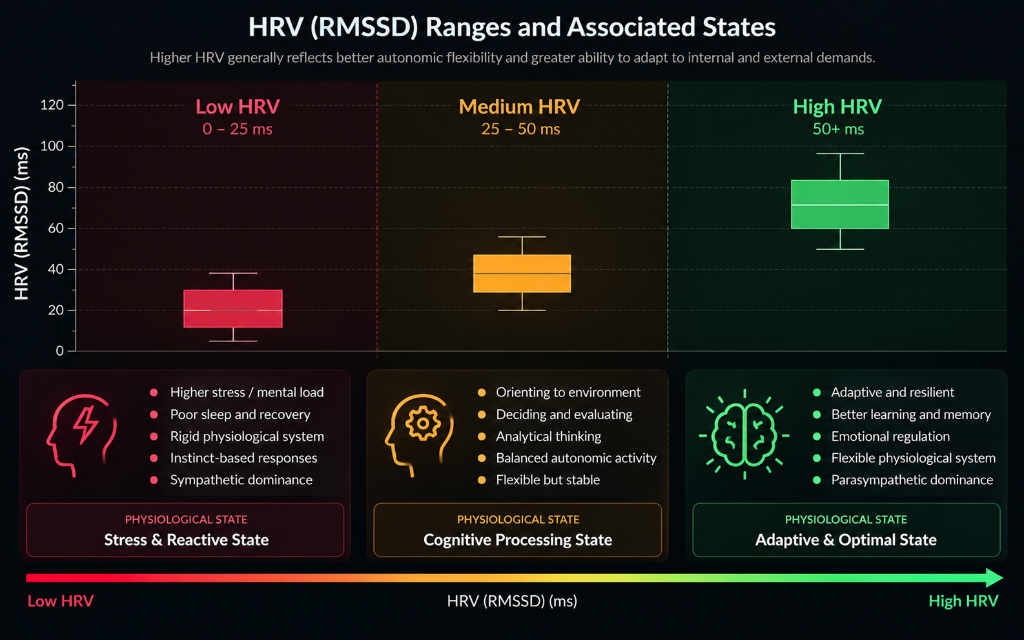

HRV (RMSSD) Ranges and Associated States
Fig 3.1 · HRV (RMSSD) Ranges & Associated States N=1 Multi-Week
Observation

"Autonomic baselines are personal moving targets. Without continuous calibration, static HRV thresholds produce false positives."

Multi-Week N=1 Protocol Δ 25+ BPM Baseline Drift Cognitive State Signatures
Phase 04 · Cognitive Validation OpenNeuro ds006848 · N=30

Question-Level Cardiac Dynamics in Working Memory

Audited 5,959 Sternberg memory trials with continuous 1000 Hz ECG across 30 participants. Discovered a reproducible evoked deceleration (−1.93 BPM) during mental holding, and verified that attenuated decelerators suffered a selective −8.32% accuracy deficit under speed pressure (p = 0.0084).

Ran an adversarial forensic audit with False Discovery Rate and Linear Mixed Models to eliminate short-window mathematical artifacts and prove statistical authenticity.

Observation

"Cardiac deceleration is not noise—it is a functional physiological correlate of mental resource allocation under cognitive load."

5,959 Trials Audited 1000 Hz Continuous ECG −1.93 BPM Holding Dip LMM & FDR Verified
Phase 05 · Hitting Limits Contextual Factors

Discovering Confounding Variables

Taking models out of controlled protocols and into daily routines exposed major confounders: acute sleep loss suppressed RMSSD by 34%, and subclinical illness produced a +14 BPM resting tachycardia shift without any emotional trigger.

A single-sensor ECG algorithm cannot distinguish cognitive stress from physical fatigue without sleep, temperature, and motion context.

Observation

"Autonomic signals cannot be decoded in a vacuum. Context is the difference between real mental stress and a poor night's sleep."

Sleep Loss: −34% RMSSD Febrile Drift: +14 BPM Circadian Baseline Sensitivity
Phase 06 · Forensic Audit PhysioNet mcPHASES · Data Forensics

Lunar — Physiological Data & Feature Forensics

Raw physiological data → Data quality audit → Feature engineering → Discovered pipeline bugs → Statistical validation → Physiological signal investigation
  • HRV coverage was only ~45.8%, making continuous prediction difficult.
  • I discovered a window-truncation bug where daily, weekly, and monthly features became identical.
  • I found a feature-scaling issue that amplified tiny numerical noise.
  • Quantified cycle phase variation, establishing a realistic Cohen's d = 0.27.
  • HRV showed a measurable pre-cramp deviation that survived several robustness checks.
Lunar — Pre-Cramp Onset Physiological Trajectory Deviation
Fig 6.1 · Pre-Cramp Onset Trajectory Deviation HRV Rebound · Robust Signal
Takeaway

"I stopped asking whether the model worked — and started asking whether the data and features were trustworthy."

~45.8% HRV Coverage Cohen's d = 0.27 mcPHASES · N=42 Pipeline Bug Discovery
Phase 07 · Convergence Wearable Hardware Platform

Novara — Wearable Health & AI Platform

Synthesizing four years of physiological discovery into a unified wearable platform: combining synchronous dual ECG + PPG, precision skin thermometry, and IMU motion. Cognitive workload estimation runs as an intelligent layer atop continuous clinical monitoring.

Real-world affective intelligence requires closing the loop between low-power edge signal processing, noise immunity, and personal physiological baselines.

Novara Ergonomic Finger-to-Wrist Dual-Modality Wearable Device Prototype
Fig 7.1 · Ergonomic Finger-to-Wrist Wearable Form Factor Dual Optical + Wrist Pod
Observation

"Reliable physiological computing requires the entire stack: analog front-end integrity, multisensor context, and edge intelligence."

Dual ECG + PPG ESP32-S3 BLE Stream <15ms Telemetry Latency Edge DSP COM3 Live Verified
